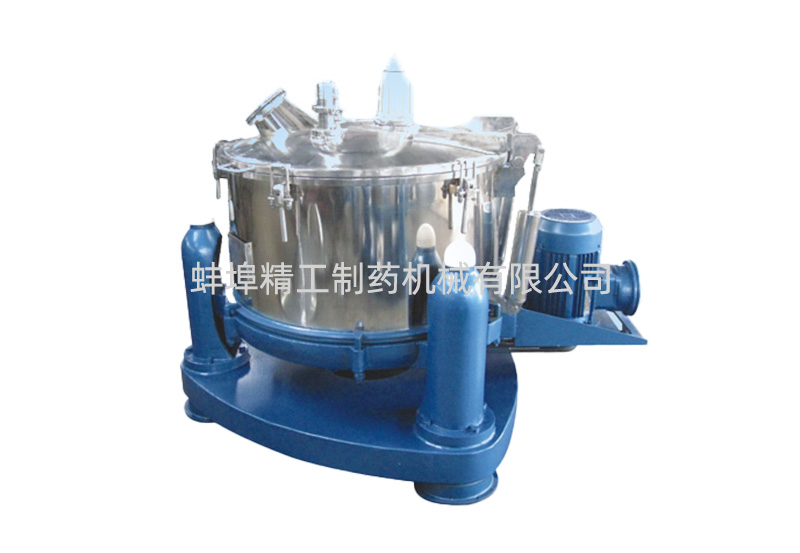

SB (W) series three-foot fully sealed (without foundation) centrifuge

Working principle

SB (W) series centrifuge is a centrifuge designed and manufactured according to the requirements of national pharmaceutical production GMP regulations and according to the needs of domestic customers. Closed operation, intermittent work, large flip cover structure design, the machine cover has a mechanical balance device, opening the cover is safe and labor-saving, the feed is added from the feed pipe on the cover, and the drum is rotated at a high speed for separation, and the material can be washed. The lid is unloaded manually.

Performance and use

Fully-sealed structural design to avoid cross-contamination of materials and improve working environment. It is suitable for solid-liquid separation of suspension and dehydration of fibrous materials. It is suitable for toxic, harmful, flammable, explosive and other places.

Main feature

1. Large clamshell structure, easy to clean.

2. It can separate large, medium and fine particles and has strong adaptability.

3. Reasonable structure design, no dead angle, smooth transition.

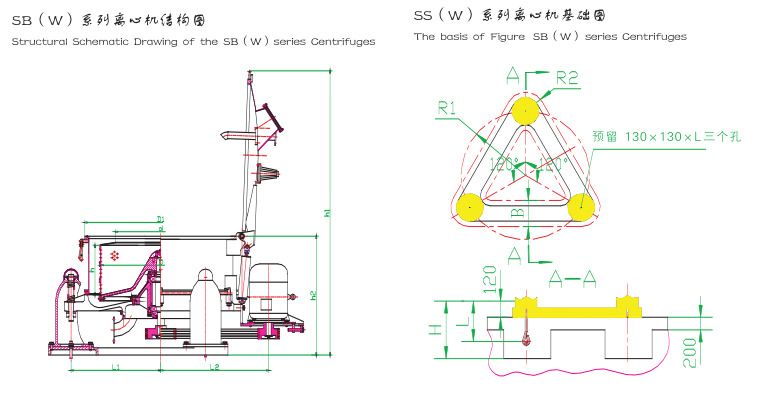

Schematic

Technical Parameters
