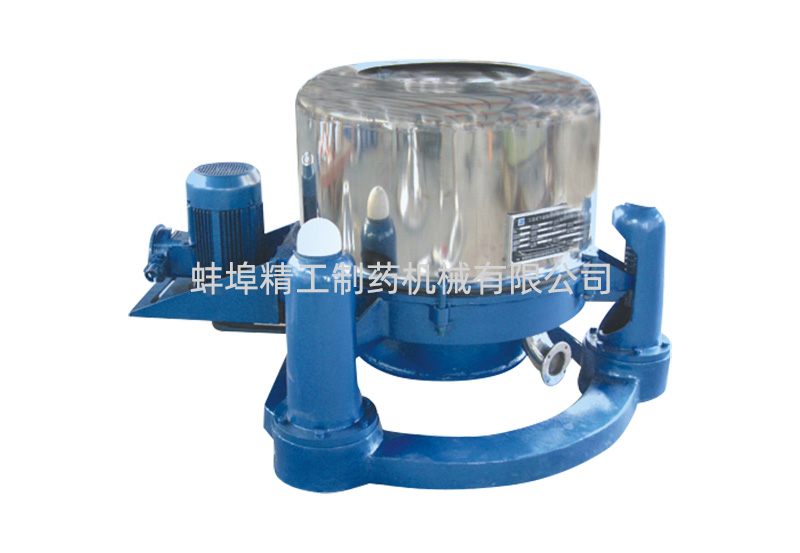

SSC series sedimentation centrifuge
Date of issue:2020-04-26 Views:267
Working principle
SSC / PCS series centrifuges are equipped with a skimming device. The drum rotates at a high speed to form a centrifugal force field. The solid and liquid phases are separated due to different specific gravity. After shutdown, manually remove the filter cake.
Performance and use
This series of centrifuges are mainly suitable for the separation of suspensions with low solids content and manual unloading of filter cakes. Suitable for industries such as hemp residue oil extraction and dye clarification.
Main feature
It is suitable for solid-liquid separation with low solid phase and difficult regeneration.

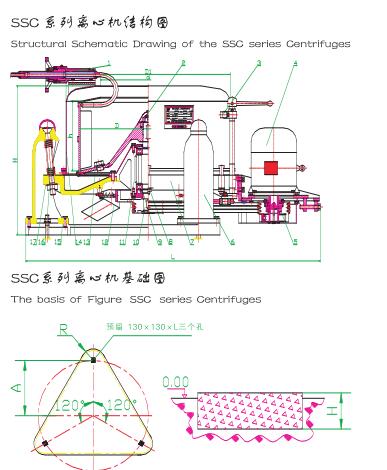

Schematic
Technical Parameters
Items
SSC/PSC450
SSC/PSC600
SSC/PSC800
SSC/PSC1000
Drum diameter (mm)
450
600
800
1000
Drum height (mm)
300
320
400
420
Drum speed (r / mm)
2300
1900
1500
1200
Separation factor (Fr)
1333
1212
1008
806
Working volume (L)
20
45
100
140
Loading limit (kg)
30
70
135
200
Motor power (kw)
3
4
7.5
11
Dimensions (L × W × H) mm
1150 × 860
× 810
1380×1130
×980
1720×1270
×1030
213 0 ×1680
×1150
Weight (kg)
450
680
1150
1850
