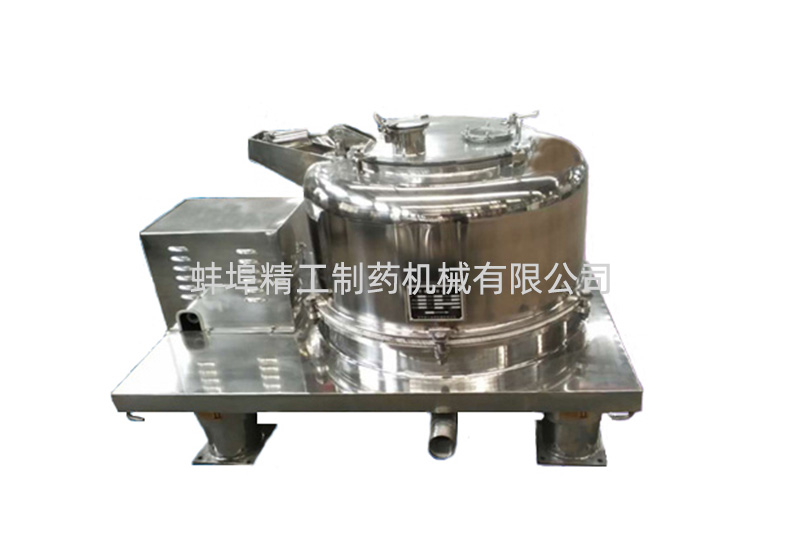

PS Series Flat Top Discharge Centrifuge
Date of issue:2020-04-26 Views:320
Working principle
PS series centrifuges are intermittent centrifuges designed according to the requirements of national pharmaceutical production GMP regulations and according to the needs of domestic customers. The materials are added from the top of the centrifuge and separated by the high-speed rotation of the rotating drum. After the separation is completed, the brakes are manually applied and the materials are discharged manually.
Performance and use
PS series centrifuges have strong adaptability to materials, can separate granular materials, and can also dehydrate the pieces, which can separate various difficult suspensions.
Main feature
1. Flat structure, easy to clean.
2. The liquid damping shock absorption system has a small impact on the surrounding area.
3. Manual unloading is not easy to damage the crystal grains.
Technical Parameters
Items
PS300
PS450
PS600
PS800
PS1000
PS1200
PS1250
Drum diameter (mm)
300
450
600
800
1000
1200
1250
Drum height (mm)
160
300
320
400
420
500
500
Drum speed (r / mm)
2900
2000
1600
1200
1000
900
900
Separation factor
1413
860
860
645
560
545
567
Working volume (L)
5
20
45
100
140
250
300
Loading limit (kg)
7.5
30
70
135
200
350
400
Motor power (kw)
0.75
2.2
3
5.5
11
11
15
Dimensions (L × W × H) mm
630 × 630
× 580
1150 × 900
× 730
1350 × 1000
× 820
1600 ×1150
× 900
2000 × 1500
× 950
2350 × 1800
× 1080
2350 × 1800
× 1080
Weight (kg)
230
550
1000
1300
2300
3000
3200
