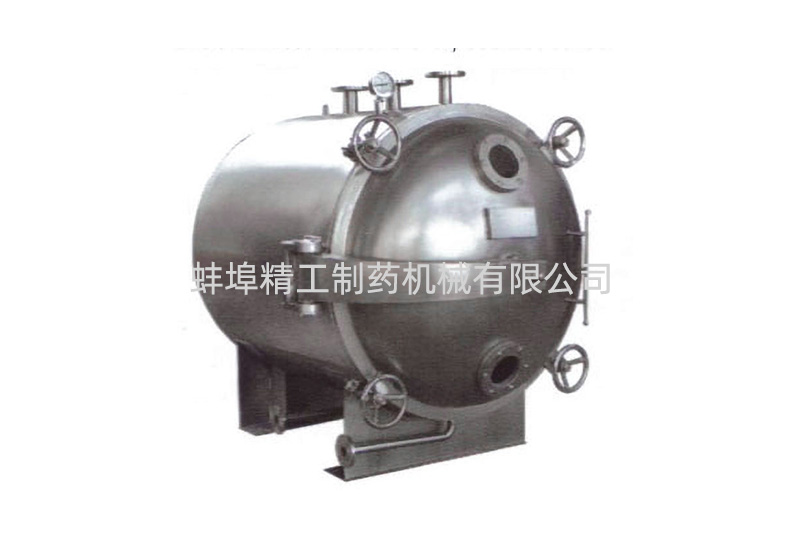

YZG series vacuum dryer

Date of issue:2020-04-26 Views:589

Principle

The so-called vacuum drying is to heat and dry the dried materials under vacuum conditions. If the vacuum pump is used for suction and dehumidification, the drying rate is accelerated. Note: If a condenser is used, the solvent in the science department can be recovered through the condenser; if a SK series water ring vacuum pump is used, the condenser can be eliminated, saving energy investment.

Application

It is suitable for low temperature drying of heat sensitive materials that are easily decomposed, polymerized and deteriorated at high temperature: it is widely used in pharmaceutical, chemical, food, electronics and other industries.

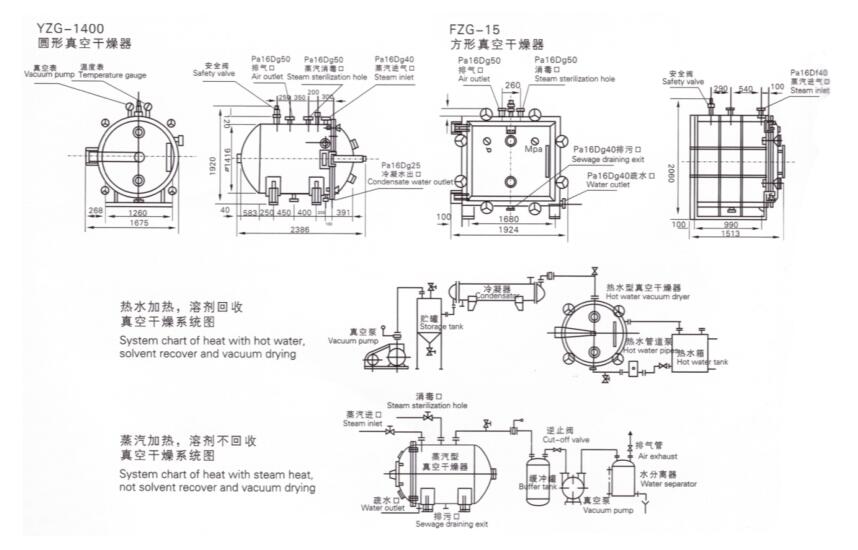

Flow chart

Technical Parameters

Name / Model	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-10	FZG-15	FZG-20
inner siza of drying chamber(mm)	φ600×976	φ800×1247	φ1000×1527	φ1400×2054	1500×1060 ×1220	1500×1400 ×1220	1500×1800 ×1220
Outer siza of drying chamber(mm)	1135×810 ×1020	1700×1045 ×1335	1693×1190 ×1500	2380×1675 ×1920	1924×1720 ×1513	1513×1924 ×2060	1924×2500 ×1513
Interval(mm)	4	4	6	8	5	8	12
Layers of baking tray(mm)	81	82	102	102	122	122	122
Size of baking tray(mm)	310×600×45	520×410×45	520×410×45	460×640×45	460×640×45	460×640×45	460×640×45
Quantiny of baking tray	4	8	12	32	20	32	48
Working pressure inside the pipe of baking support(Mpa)	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
Operation temperature of baking support(℃)	35-150	35-150	35-150	35-150	35-150	35-150	35-150
Degree of vacuum inside the chamber when operation in idle(Mpa)	-0.1	-0.1	-0.1	-0.1	-0.1	-0.1	-0.1
Under the cindition of -0.1Mpa and 110℃,evaporation rate of wate(kg/m ·hr)	7.2	7.2	7.2	7.2	7.2	7.2	7.2
When conden sor is used ,model,and power of vacuum pump(kw)	2X-15A 2KW	2X-30A 2KW	2X-30A 2KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-90A 2KW
When conden sor is not used ,model, andpower of vacuum pump(kw)	SZ-0.5 1.5KW	SZ-1 2.2KW	SZ-1 2.2KW	SZ-1 2.2KW	SZ-2 4KW	SZ-2 4KW	SZ-2 4KW
Weight of drying chamber(kg)	250	600	800	1400	1400	2100	3200
