Plgz series flat bag pulling automatic scraper discharge centrifuge
Date of issue:2020-04-26 Views:1061
WORKING PRINCIPLE
During the unloading process, the scraper acts. Under the action of the scraper, most of the materials are discharged to the outside of the machine through the blanking hole at the bottom of the drum, and the residual material layer is vibrated through the automatic bag pulling mechanism inside the drum to completely remove the residual material layer.
MAIN FEATURES
1. Variable frequency speed control, fully automatic control.
2. The utility model has all advantages of a common vertical scraper discharging centrifuge.
3. Automatic operation of bag pulling lowering and resetting.
4. The filter cloth bag can move up and down in the drum to produce the oscillation effect and completely remove the residual filter cake.
5. You can choose the type of large flip or full flip as required.

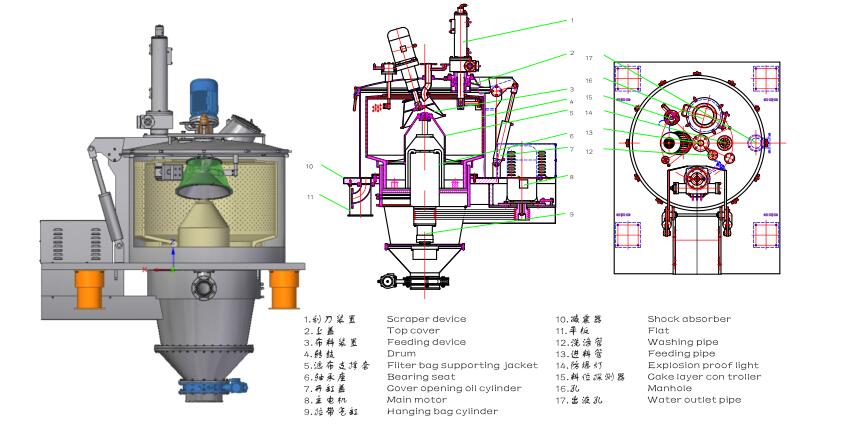

STRUCTURE DIAGRAM
TECHNICAL PARAMETER
Item / Model
PLGZ800
PLGZ1000
PLGZ1250
PLGZ1600
Drum Diameter(mm)
800
1000
1250
1600
Drum Height(mm)
400
500
500/630
800
Drum Volume(L)
80
165
300/400
800
Maximum Loading Limit(kg)
100
230
380/520
1000
Drum Speed(r/min)
1200/1500
1000/1200
1000/1000
850
Separation factor
645/1007
560/806
700/700
647
Motor power(w)
7.5
15
18.5/22
37
Machine weight(kg)
2100
3200
6000
11000
Boundary dimension(L*W*H) (mm)
1700*1400*2350
2000*1500*2190
2300*1800*2500
3000*2300*2850
Opening height(mm)
2150
2560
2950
3900
