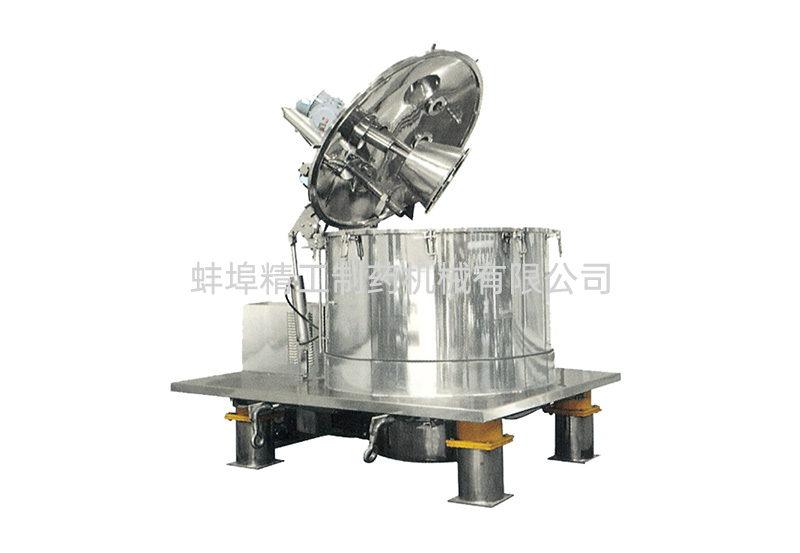

PGZ series flat plate type down discharging full automatic centrifuge

WORKING PRINCIPLE

PGZ series centrifuges are a new generation of fully automatic state-of-the-art centrifuges designed and manufactured for the requirements of domestic pharmaceutical and chemical enterprises, based on the requirements of GMP regulations of national pharmaceutical production, absorbing the advanced international technology and adopting a new design concept. The machine adopts PLC program control, child frequency control, brake unit, brake electric Liming car, field operation box is sealed and explosion-proof, and the whole feeding and dividing process can realize self-service operation through material level switch control. This type of centrifuge has multiple safety protections, such as explosion-proof gas protection, drum speed tracking, vibration protection, machine cover interlock protection, double control of knife making, rotating and lifting machinery and electricity, United Nations Protection of scraper and drum operation, joint pin protection of opening board and machine operation, etc.

MAIN FEATURES

1. Adopt PLC control, program setting, unattended automatic operation. Feed, cut, filter and wash. Monitor the whole process of fine filtration and creeping.

2. Variable frequency speed regulation, stable start-up, adjustable number of split countries.

3. The utility model has the advantages of consumable braking, non-contact special driving mode and no dust pollution.

4. Totally enclosed structure, the seal is made of silicone rubber or rubber compound, and the hydrogen protection of the inner tube of Shangxin machine can meet the explosion-proof requirements. 5. The structure design is reasonable, the online cleaning system (spray system) ensures the cleanliness requirements, and compound GMP regulations.

5. Automatic action element adopts pneumatic system, which is clean and sanitary.

6. Mechanical position detector.

7. Optional gas assisted scraper, pneumatic open system.

8. Convenient installation and simple structure. Beautiful appearance, easy to clean.

9. The design of shock absorption and Yanxia system is scientific and reasonable. Because of the use of balance block and high-precision liquid damping agent type food separator, all the seismic stations of the equipment are absorbed by the mesh system, and there is no detection interference to the foundation ground and surrounding environment.

10. The balance plate of equipment foundation can also be used as an operation platform, making operation and maintenance more convenient.

11. Safety protection speed detection, over vibration protection, open good protection, motor overload overheat protection. The mechanical and electrical double control of knife making, turning and lowering, and the linkage of scraper and drum.

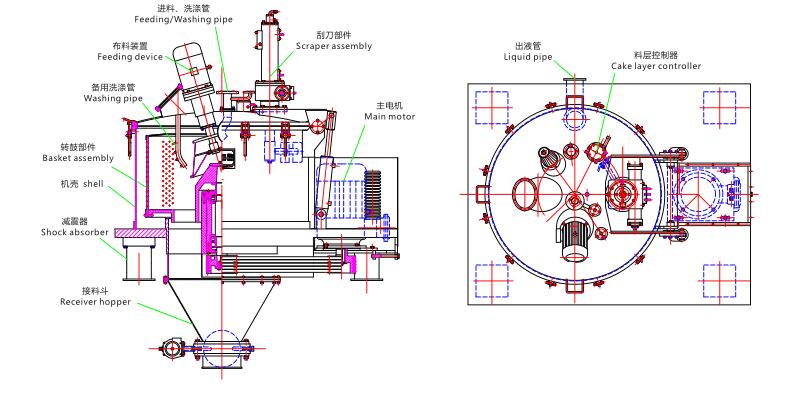

STRUCTURE DIAGRAM

TECHNICAL PARAMETER
