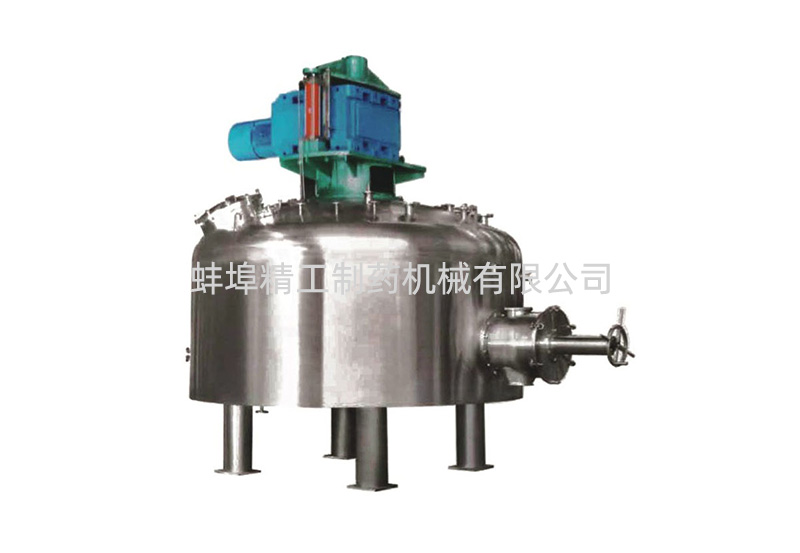

Sterile grade two-in-one filter washing and drying machine

Introduction

The equipment is composed of vertical container, stirring device, lifting mechanism, transmission mechanism, filtering device, washing device and other components. It is a multifunctional solid-liquid separation device integrating stirring, mixing, beating, filtering and washing. It is widely used in chemical, food, printing and dyeing, medicine and other industries.

Features

1. Completely closed filter, no leakage, no pollution, in line with GMP regulations;

2. Operate under pressure or vacuum to achieve solid-liquid separation. The filter cake is evenly distributed during filtration and the solid-liquid separation effect is good;

3. The spray device inside the container makes the cleaning liquid evenly distributed in the container, which can clean the inner wall of the container and the materials;

4. Fully mix the filter cake and the cleaning solution through the rising stirring paddle to make the slurry suspension filter cake fully washed;

5. Guxiu Wuke realizes the automatic unloading of the solid filter cake by reversing the stirring paddle.

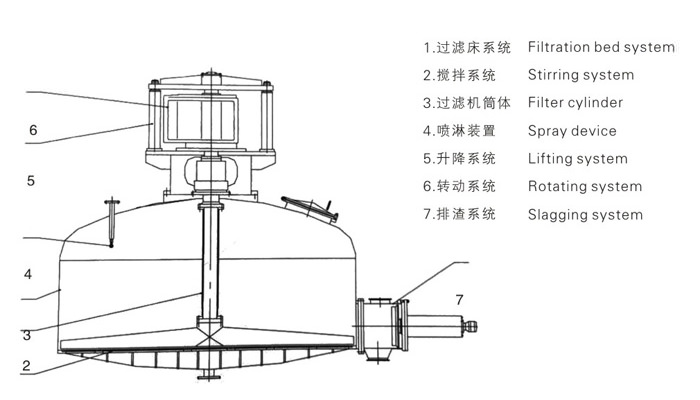

Schematic

Technical Parameters
